Circulating air ovens UT

Drying, heating, tempering and sterilizing

Certain products are not suitable for drying under vacuum or do not require this technology. For these PINK offers a comprehensive range of circulating air ovens in a huge variety of versions. These ovens can be used for drying under atmospheric conditions and for heating, tempering and sterilizing.

For drying products containing solvents under normal pressure, PINK again has a highly reliable solution. The UT-ex circulating air oven with external solvent recovery offers such features as a safe condensation and collection of potentially explosive solvents for proper disposal at any time.

Circulating air ovens UT

Circulating air ovens UT
Icon Optionen

Options

  • Interior in GMP-compliant design
  • Charging and support cart loading
  • Charging trays in standard and pharmaceutical design
  • With recessed floor rails for ground-level access
  • Reinforced chamber floor for heavier loads
  • Fresh air circulation control by vapor solvent concentration
  • Humidity measurement and control
  • Oxygen concentration monitoring
  • Gas-tight version
  • Vertical air flow
  • Design suitable for installation and operation in explosion-hazardous environments (ATEX)
Ex Zeichen

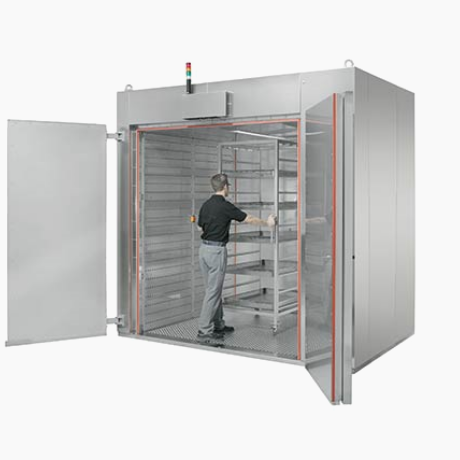

Circulating air oven

Circulating air oven in an explosion-protected version

In an explosion-protected version, GMP-compliant interior, charging and support cart loading

Circulating air tempering oven in a gas-tight version

In a gas-tight version (for inert gas), pneumatically driven lifting door

Compare Drying systems / Isolators

Type

VT UT VUT RTSD
Type of system Vacuum drying oven Circulating air oven Vacuum circulating air oven Rotary vacuum dryer
Drying principle Vacuum, heat Circulating air, heat Vacuum, circulating air, heat Vacuum, heat, rotation
Shelf area1 1 to 20 m2 0.8 to 12 m2 On request 125, 250, 500, 1,000 l
Heating Hot water, thermal oil, electric Hot water, thermal oil, electric, steam Hot water, thermal oil, electric Hot water, thermal oil
Temperature
[°C]
max. 200 max. 250 max. 200 max. 200
Materials High-grade stainless steels High-grade stainless steels High-grade stainless steels High-grade stainless steels, special materials such as Hastelloy, Inconel and titanium
Surfaces Ground and polished2 Ground and polished, mill finish Ground and polished, mill finish Ground and polished2

Options


Charging trays (standard and pharmaceutical design) yes yes yes -
Charging and support cart loading yes yes yes -
Wall installation yes yes yes yes
Pass-through design with lock function yes yes yes -
ATEX design yes yes yes yes
Automated loading and charging yes yes yes yes
Validable CIP - - - -

1 Other sizes available on request, 2 Electropolished on request
